| ◎ Explanation
of the goods |
| |
* SIZE RANGE : ∮15mm
through 300mm |
| |
* MATERIAL : Carbon Steel |
| |
* FINISH : Electro galvaized |
| * SERVICE : Recommended for the
supension of non-insulated stationary pipe lines |
| |
* ORDERING : ∮300mm over ordering
manufacture |
|
|
| ◎

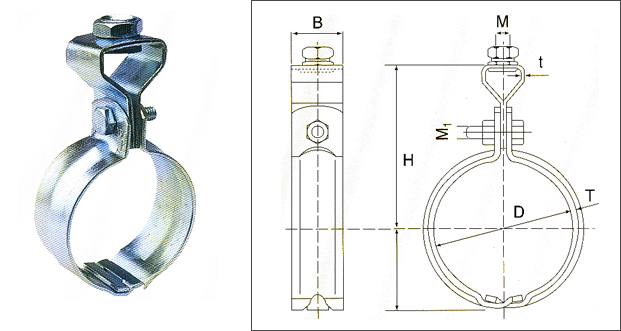

DIMENSIONS |
nominal
pip size
|
B |
t |
M |
M1 |
D |
H |
maximum
recommended load (kg) |
weight approx
Kg per 100 |
15 |
25 |
1.6 |
M10(3/8) |
M6(1/4) |
22 |
69 |
280 |
. |
20 |
25 |
1.6 |
M10(3/8) |
M6(1/4) |
28 |
71 |
280 |
. |
25 |
25 |
1.6 |
M10(3/8) |
M6(1/4) |
35 |
80 |
280 |
. |
32 |
25 |
1.6 |
M10(3/8) |
M6(1/4) |
43 |
82 |
280 |
. |
40 |
25 |
1.6 |
M10(3/8) |
M6(1/4) |
49 |
84 |
280 |
. |
50 |
30 |
2.0 |
M10(3/8) |
M6(1/4) |
61 |
96 |
280 |
. |
65 |
30 |
2.0 |
M10(3/8) |
M6(1/4) |
77 |
116 |
450 |
. |
80 |
40 |
2.3 |
M10(3/8) |
M6(1/4) |
90 |
126 |
450 |
. |
100 |
40 |
2.3 |
M12(3/8) |
M6(1/4) |
115 |
161 |
450 |
. |
125 |
40 |
2.3 |
M12(1/2) |
M10(3/8) |
140 |
176 |
450 |
. |
150 |
40 |
3.0 |
M12(1/2) |
M10(3/8) |
166 |
190 |
450 |
. |
200 |
50 |
3.0 |
M12(1/2) |
M10(3/8) |
217 |
230 |
900 |
. |
250 |
50 |
4.5 |
M12(1/2) |
M12(1/2) |
268 |
230 |
1350 |
. |
300 |
55 |
4.5 |
M16(5/8) |
M12(1/2) |
319 |
260 |
1800 |
. |
|
| |
| Pioe
Band |
|
Turnbuckle |
 |
|
 |
Type |
Materai Size |
Bolt
Size |
1TYPE |
1.6 X 25 |
10(3/8W) |
2TYPE |
2 X 30 |
10(3/8W) |
3TYPE |
2.3 X 40 |
10(3/8W) |
4TYPE |
2.3 X 40 |
12(1/2W) |
5TYPE |
3 X 50 |
12(1/2W) |
6TYPE |
4.5 X 50 |
12(1/2W) |
|
|
| * MATERIAL : Carbon Steel |
|
* MATERIAL : Carbon Steel |
| * FINISH : Electro galvanized |
|
* FINISH : Electro galvanized |
|
| |
| |
| |
