◈ BRASS BALL
VALVE (KSB 2308) |
|
|
|
| |
| ◎ Explanation
of the goods |
| Ball Valve for Gas
& Water/Oil |
| |
* Gain the Ks Mark
for the first time in country |
| |
* It used for LPG, LNG, GAS Line
and other liquid type Line |
| |
* Strong inside Pressure the accuracy
is good, entrie security |
| |
* Easy and instant operation,
turn on handle to 90˚ open and close perfectly |
| |
|
|
| ◎ SPECIFICATIONS |
MODEL NO. |
NOM. DIA |
NOM. PRESS |
MAX. WORKING PRESS. |
MAX. WORKING TEMP. |
FLUID |
END
CONNECTION |
DHBV-1000 |
8A -80A
(1/4"~3") |
10kgf /㎠
(150 PSI) |
14kgf /㎠
(200 PSI) |
80˚C(176˚F) |
GASES
& LIQUIDS |
KSB 0222
(TAPER PIPE
THREADS) |
|

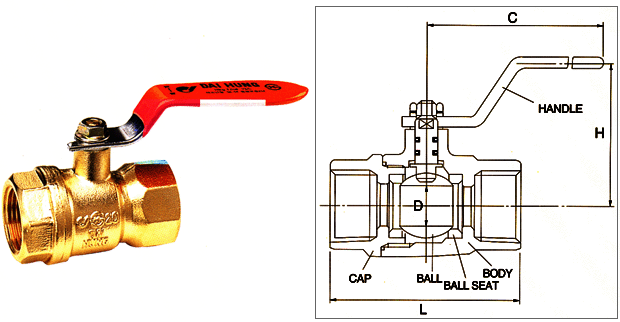

| ◎ DIMENSIONS |
NOM.DIA
|
ORIFICE |
FACE TO FACE |
CENTER TO
HANDLE |
RADIUS TO
HANDLE |
CONNECTION |
D |
L |
H |
C |
PT-THERAD |
8(1/4) |
10 |
43.8 |
34 |
56 |
PT1/4-19 |
10(3/8) |
10 |
43.8 |
35.8 |
56 |
PT3/8-19 |
15(1/2) |
11 |
52 |
42 |
(S)55/83(L) |
PT1/2-14 |
20(3/4) |
17.1 |
61.5 |
47.2 |
(S)55/83(L) |
PT3/4-14 |
25(1) |
22.2 |
73.5 |
56.5 |
(S)55/120(L) |
PT1-11 |
32(1 1/4) |
27.2 |
84 |
60.2 |
120 |
PT11/4-11 |
40(1 1/2) |
34.2 |
95 |
65.3 |
120 |
PT11/2-11 |
50(2) |
42.2 |
103.5 |
68.5 |
135 |
PT2-11 |
65(2 1/2) |
50.2 |
138 |
97 |
200 |
PT2 1/2-11 |
80(3) |
65.2 |
160 |
101 |
200 |
PT 3-11 |
|
|
|
| |
|
