◈ X-L &
PPC BALL VALVE (KSB 2308) |
|
|
|
| |
| ◎ Explanation
of the goods |
| Ball Valve for X-L
& PPC |
| |
* As it contacts with
brass pipe, onlu welding valve with brass pipe. |
| |
..easy
construct and reduce date of the buiding. |
| |
* After contact no leakage, reasonable
price, excllent construct. |
| |
* Easy operation, turn on handle
90˚ open and close perfectly. |
| |
|
|
| ◎ SPECIFICATIONS |
MODEL NO. |
NOM. DIA |
NOM. PRESS |
MAX. WORKING PRESS. |
MAX. WORKING TEMP. |
FLUID |
END
CONNECTION |
DHBV-2000 |
15A 20A
(1/2"~3/4") |
10kgf /㎠
(150 PSI) |
14kgf /㎠
(200 PSI) |
80˚C(176˚F) |
Water
& Steam |
KSB 0222
(TAPER PIPE
THREADS)
황동링 너트 조임식 |
|

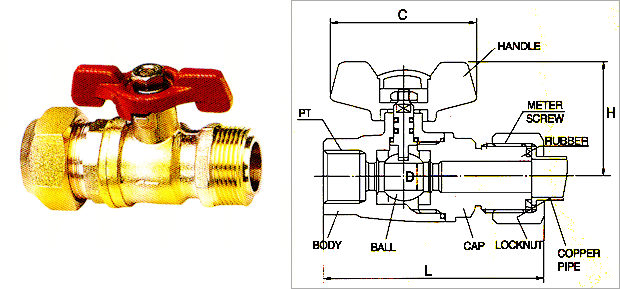

| ◎ DIMENSIONS |
NOM.DIA
|
ORIFICE |
FACE
TO FACE |
CENTER
TO HANDLE |
RADIUS
TO HANDLE |
CONNECTION |
REMARKS |
D |
L |
C |
H |
PT-THREAD |
M-THREAD |
15(1/2) |
10 |
70 |
53 |
40 |
PT1/4-14 |
M 26 x 1.5 |
. |
20(3/4) |
15 |
77 |
53 |
46 |
PT3/4-14 |
M 32 x 1.5 |
. |
|
|
|
| |
|
