| ◎ Explanation
of the goods |
| Ball Valve for Gas
& Water/Oil |
| |
* Strong inside Pressure
the accuracy is good, entire secutity |
| |
* Easy and instant operation,
turn on handle to 90˚ open and close perfectly |
| |
|
|
| ◎
주의사항 |
| |
* PIPE와 연결시 테프론 테이프를
절대 사용하시 마십시오 |
| |
* 접착제 사용시 1일 이상 경과후 TEST하시기 바랍니다. |
| |
|
|
|
MODEL
NO. |
NOM.
DIA |
NOM.
PRESS |
MAX.
WORKING PRESS. |
MAX.
WORKING TEMP. |
FLUID |
END
CONNECTION |
DHBV-6000 |
8A -50A
(1/2"~2") |
10kgf /㎠
(150 PSI) |
20kgf /㎠
(200 PSI) |
80˚C(176˚F) |
GASES
& LIQUIDS |
KSB 0222
(TAPER PIPE
THREADS) |
|
|
|
| ◎

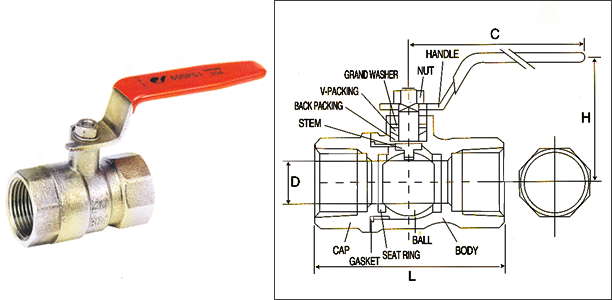

DIMENSIONS |
NOM.DIA
|
ORIFICE |
FACE TO FACE |
CENTER TO
HANDLE |
CONNECTION |
D |
L |
H |
C |
8A(1/4) |
8 |
42 |
37 |
60 |
10A(3/8) |
8 |
45 |
37 |
62 |
15A(1/2) |
12 |
53 |
50 |
90 |
20A(3/4) |
15 |
59 |
51 |
90 |
25A(1) |
20 |
71 |
61 |
116 |
32A(1 1/4) |
25 |
84 |
65 |
116 |
40A(1 1/2) |
32 |
95 |
68 |
144 |
50A(2) |
40 |
109 |
75 |
144 |
|
