& COOL BALL VALVE (KSB 2308)
|
|
|
|
| |
| ◎ Explanation
of the goods |
| Ball Valve HOT &
COOL |
| |
* Gain the Ks Mark
for the first time in country |
| |
* It used for HOT & COOL water
Line and other Liquid type Line |
| |
* Strong inside Pressure the accuracy
is good, entrie security |
| |
* Easy and instant operation,
turn on handle to 90˚ open and close perfectly |
| |
|
|
|
MODEL
NO. |
NOM.
DIA |
NOM.
PRESS |
MAX.
WORKING PRESS. |
MAX.
WORKING TEMP. |
FLUID |
END
CONNECTION |
DHBV-4000 |
15A -50A
(1/2"~2") |
10kgf /㎠
(150 PSI) |
14kgf /㎠
(200 PSI) |
80˚C(176˚F) |
HOT &COOL
Water |
KSB 0222
(TAPER PIPE
THREADS) |
|
|
|

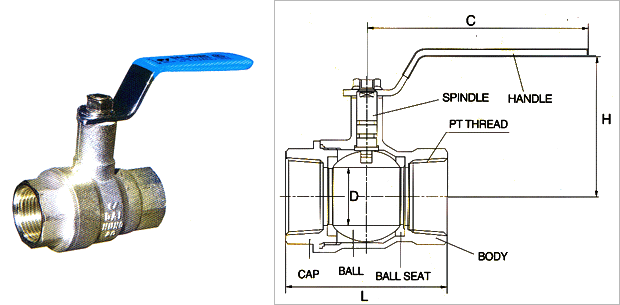

| ◎ DIMENSIONS
|
NOM.DIA
|
ORIFICE |
FACE TO FACE |
CENTER TO
HANDLE |
RADIUS TO
HANDLE |
CONNECTION |
D |
L |
h |
C |
PT-THERAD |
15A(1/2) |
12.1 |
52 |
50 |
65 |
PT1/2 - 14 |
20A(3/4) |
21 |
67 |
45 |
91 |
PT3/4 - 14 |
25A(1) |
25.5 |
80.5 |
70 |
124 |
PT1 - 11 |
32A(1 1/4) |
31.4 |
88 |
75 |
124 |
PT11/4 - 11 |
40A(1 1/2) |
38.5 |
101.1 |
80 |
124 |
PT11/2 - 11 |
50A(2) |
46.5 |
111.5 |
86 |
137 |
PT2 - 11 |
|
|
|
| |
|
